CNC Diamond Wire Cutting MachineHLSJ-2000数控金刚石绳锯

领跑智能建造新“石”代

CNC Diamond Wire Cutting MachineHLSJ-2000数控金刚石绳锯

所属单位项目: 所属的种别:生成物库

想领会更多相干产物信息,请接洽咱们!

0594-2197723
hualongmc@163.com
我要征询
  • 产物申明
  • 手艺参数

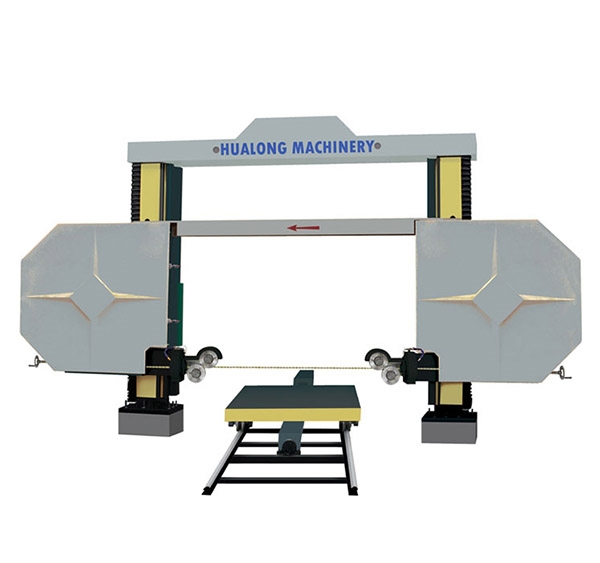

CNC金刚石线切割机
HLSJ-2000 接纳数控节制,四轴联动,可以或许加工差别规格的石材以建造庞杂形状的成品,比方圆弧板、实心和空心柱、罗马柱、大型实心线条、字母等等。

CNC Diamond Wire Cutting Machine

ꦛ HLSJ-2000 adopts CNC control, fಌour-axis linkage, can process different specification of stones for complex shape, such as circular arc board, solid and hollow column, Roman column, large-scale solid line, letter and so on.

首要特色
1)装备数控体系,使得人机交互界面既简洁又矫捷。
2) 飞轮张力具备不变且恒定的拉伸形式,可进步切割精度。
3)各类庞杂的二维外表都可停止加工处置。
4)切割速率可按照差别需要停止调理。
5)效力极高,其所加工的板材尺寸切确,边缘平坦滑腻。

Main Features

1) Equipped with CNC system, which makes the man-manchine interface easy and flexible. 2) Flywheels tension has a stable, constant stretch mode to enhance cutting accuracy. 3) Diverse, complex, 2-dimensional surfaces can be processed 4) Cutting speed is adjustable according to different requirements. 5) High efficiency, the slates it processed are of exact size, and the margin is flattened and sleek.

称号 Name 单元Unit HLSJ-1500 HLSJ-1800 HLSJ-2200
最大加工 尺寸 Nax processing dimensions mm 3000*2000*1500 3600*2000*1800 4000*2000*2100
串珠绳长度 String bead wire length mm 16500 19300 21350
串珠绳直径 String bead wire dianeter mm Φ8-Φ10 Φ8-Φ10 Φ8-Φ10
切割线速率 Cutting wire speed m/s 0-40 0-40 0-40
总功率 Gross power kw 19.38 19.38 19.38
耗水量 Water consumption m³/h 2 2 2
形状尺寸 Dinensions(L*W*H) mm 7500*6000*380 8800*6800*4800 9800*7000*5200
分量 Gross weight kg 7000 10500 14000
幸福语音提示:假如想领悟更高细节处,样式、规则、标价和工作预计,请洽谈我们。
