荒料切割装备

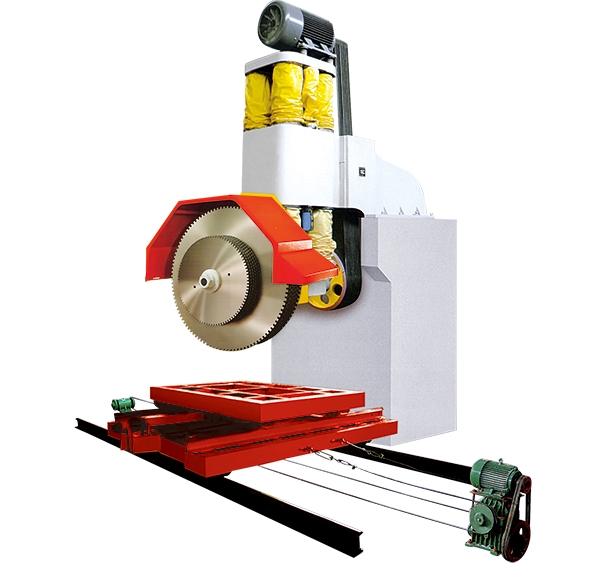

Hydraulic Mulit-blade Stone Cutting MachineHLDQ-1600/2200液压式起落多片组合切石机

领跑智能制作新“石”代

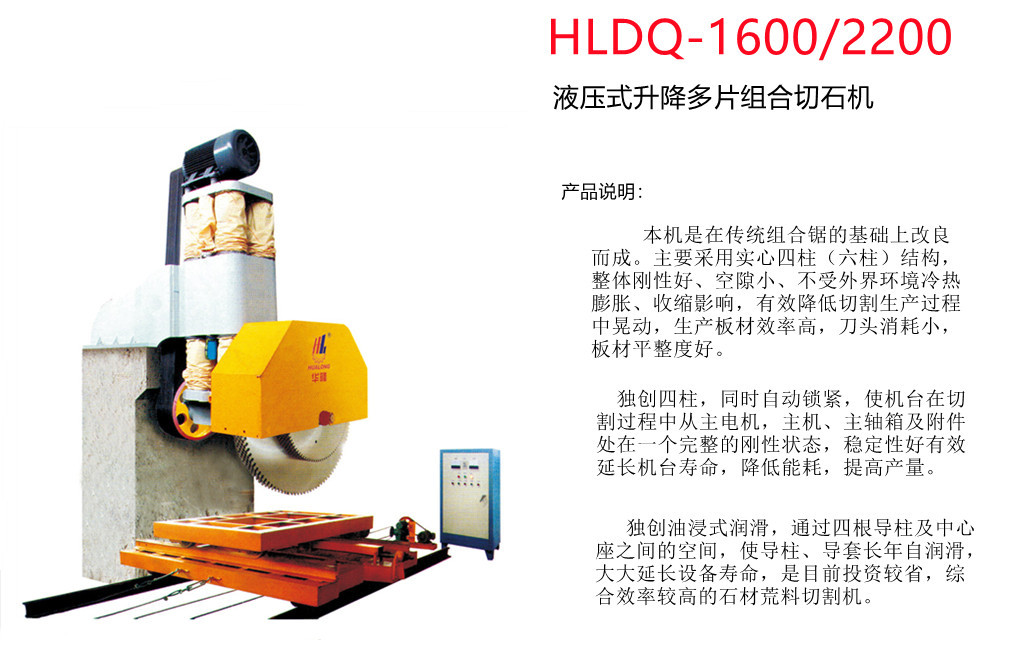

Hydraulic Mulit-blade Stone Cutting MachineHLDQ-1600/2200液压式起落多片组合切石机

所属单位该品牌:华隆 隶属关系种别:荒料裁割武器装备

想领会更多相干产物信息,请接洽咱们!

0594-2197723
hualongmc@163.com
我要征询
  • 产物申明
  • 手艺参数

推销产品可发表评论德律风电话,人们会与您热情接待!

Purchase please leave a message phone and email, we will contact you!



液压式单臂多片锯 HLDQ-1600 合用于切割石块,如花岗岩、大理石等。
首要特色
(1)接纳全密封的四缸导向轨停止起落操纵,这使得全部布局加倍安定,削减了磨损,并能永劫间坚持机器处于最好任务状况。
(2) 电动主动切片分手手艺进步了产物的精度,下降了休息强度,并进步了出产效力。

Hydraulic Lift Mulit-blade Stone Cutting Machine HLDQ-1600  is suitable  for cutting✱ stone blocks, such as  granite, marble.

Main Features

1)  Full sealed four-cylinder guider rail is used for rising and falling which makes the whole structure more stable, reducing wear and keeping themachine in the best working status for long time.

2)  Electric automatic slice separating improves the precision of the products, reduce labour intensity and improves the efficiency.


接洽咱们,获得完全计划!
Contact us to obtain the complete solution!





Hot Tags: hualong 5 axis cnc stone cutting machine, China, manufacturers, suppliers, factory, price, for sale, Granite Tile Polishing Machine, 5 Axis CNC Stone Saw, Double Blade Granite Quarry Machinery, Multi Balde Stone Cutting Machine, Automatic Stone Bridge Saw, CNC Sawjet
华隆POS机,车床车铣复合桥切机,四轴桥切机,4+1桥切,5+1桥切,三轴桥切机,红外线桥切机,石切机,石制作加工处理处理场史诗武器武器装备,石打磨机,石打磨史诗武器武器装备,石制作加工处理处理里头,面盆台制作加工处理处理里头,水刀,水刀激光切割锯,矿井开采业史诗武器武器装备,矿井圆筒锯,圆筒双刀锯,矿井机,矿井锯。



称号 Name 单元/Unit HLDQ-1600/6 HLDQ-1600/10
HLDQ-1600/16
HLDQ-1600/12
锯片直径 Btade diameter
mm
Φ1600,Φ940
Φ1600,Φ940
Φ1600,Φ940
Φ1200
锯片数目 Number of blades
pc

6(3-Φ1600,3-Φ940)

6(3-Φ1600,3-Φ940)
6(3-Φ1600,3-Φ940)
12(Φ1200)
起落路程 Blade lifting stroke
mm
1000 1000 1000
1000
最大切割尺寸 Max.cutting size mm
3500x1300x950 3500x1300x960 3500x1300x950 3500x1300x950
路程机电功率 Power of stroke motor kw
2.2 2.2 2.2 2.2
起落机电功率 Power of lifting motor kw
22.2 2.2 2.2 2.2
主机电功率 Power of main motor
kw
37 45 55 55
耗水量
Water consumption L/min 37 42 42 42
总功率
Gross power kw 41.4 49.4 59.4 59.4
形状尺寸
Dimensions(L x W x H) mm 8500x4000x5500 8500x4000x5500 8500x4000x5500 8500x4000x5500
零件分量 Gross weight kg 6000 7800 8500 8500
祥和通知:假如想学透更加整体细节,技术参数、规范化、什么价格和工作准备,请热情接待我们可以。
